AC Compressor Clutch Assembly Repair Kit for Hyundai Grand Starex H1

Postpone Postponed

Compare In comparison

Article FD-0496

19 USD/pcs.

- +

Add to cart

Buy in 1 click

To share

The price is valid only for the online store and may differ from prices in retail stores

Description
Characteristics
Ask a question

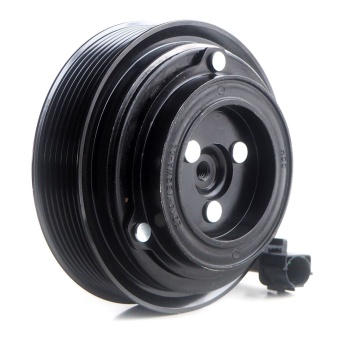

Air Conditioning Compressor Clutch Assembly Repair Kit for Hyundai Grand Starex / H1
Compatibility with AC Compressor Halla Climate Control Corp HCC HS-20 \ RS-18.

Package

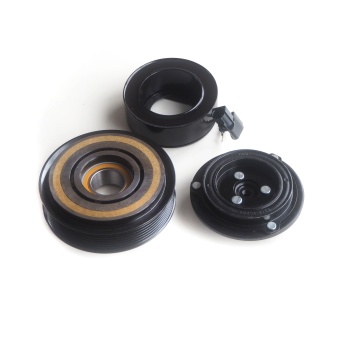

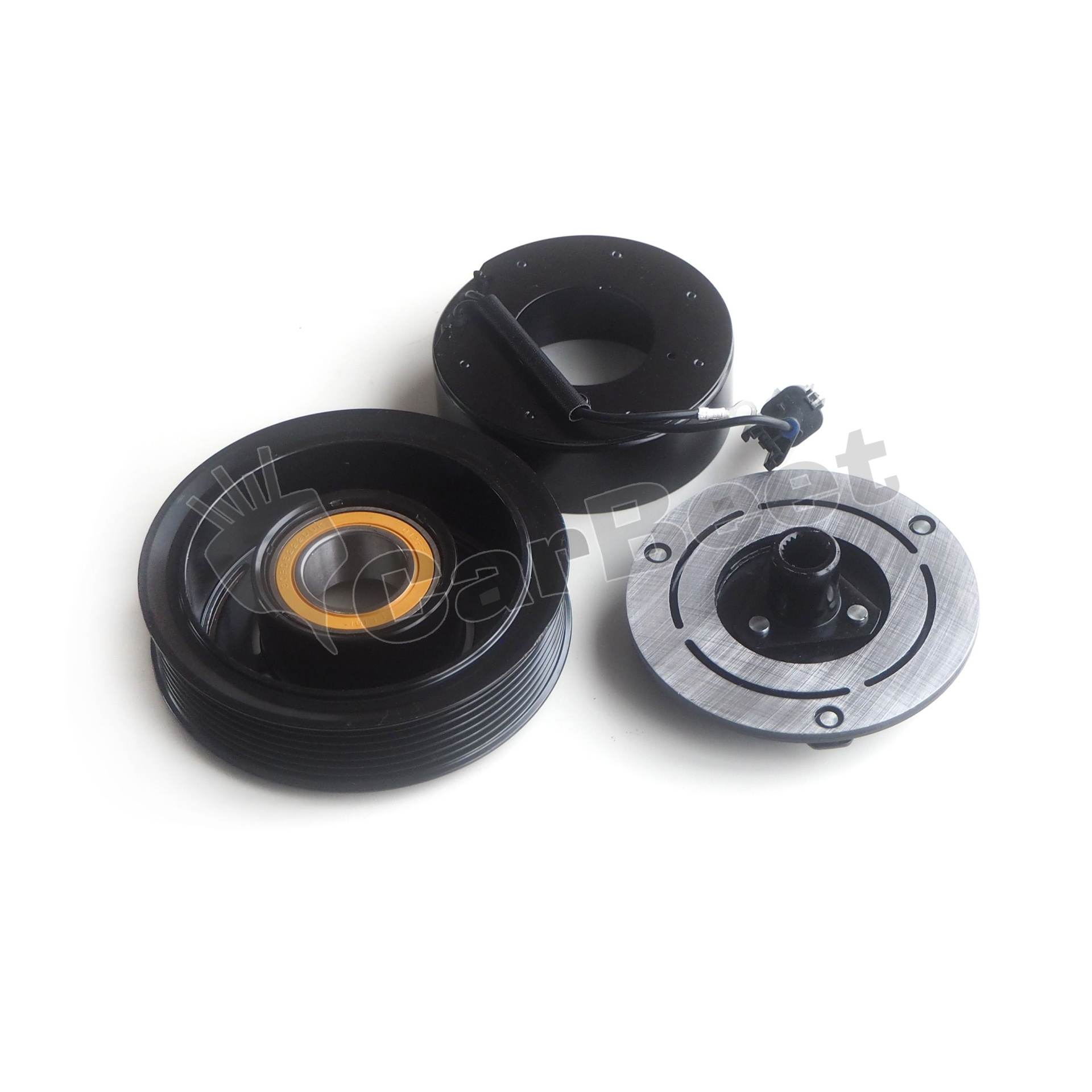

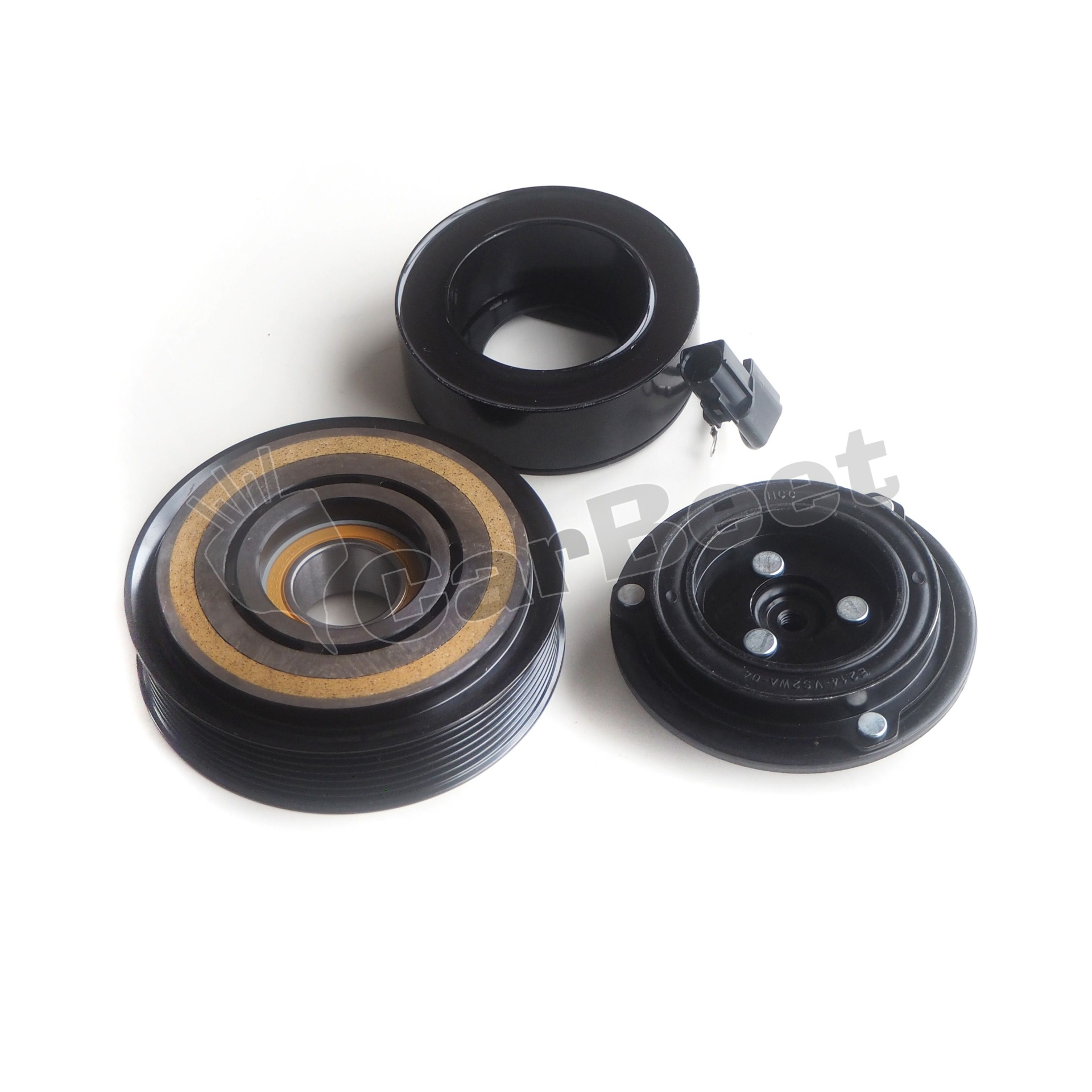

Pulley, pressure plate, electromagnet and washers to adjust gap between pulley and pressure plate.

Marka	Hyundai
Model	Grand Starex , H1
Warranty	12 months
Country	China
Pulley Groove Quantity	7
Pulley Diameter (mm)	127
Front Plate Diameter (mm)	105
Long of spline (mm)	17
Number of splines	21
Bearing Size (mm)	30-52-22
Outer Diameter Electromagnetic coils (mm)	61-96
Thickness (height) Electromagnetic Coil (mm)	31
Mounting Hole Diameter Electromagnetic coils (mm)	45
AC Compressor and Part Number	97701-4H01097701-4H000F500-QB7BA-02F500-QB7BA-04CA500-QB7BA-10
