AC Compressor Clutch Assembly Repair Kit for Hyundai Getz (TB) 1,1

Postpone Postponed

Compare In comparison

Article FD-0495

19 USD/pcs.

- +

Add to cart

Buy in 1 click

To share

The price is valid only for the online store and may differ from prices in retail stores

Description
Characteristics
Ask a question

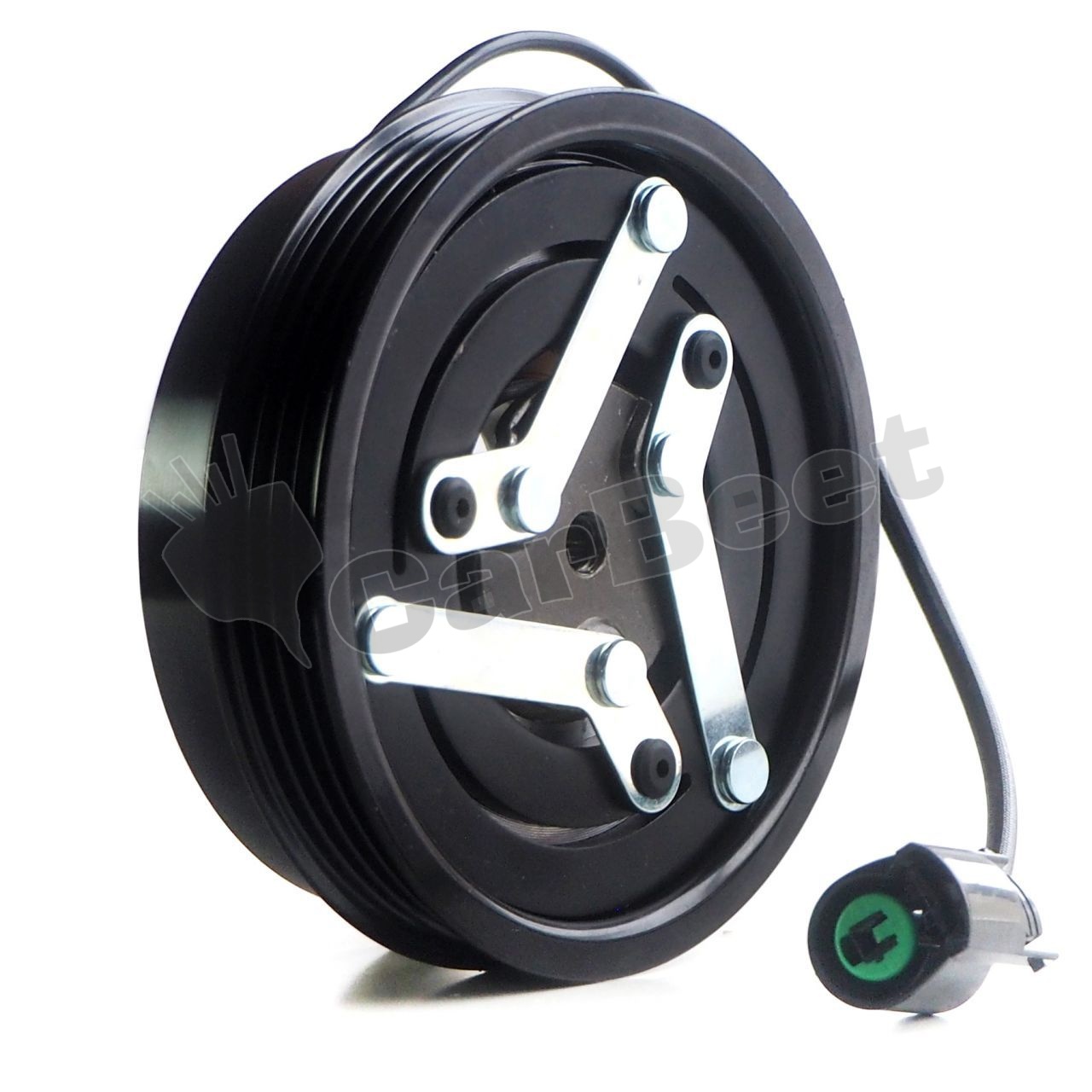

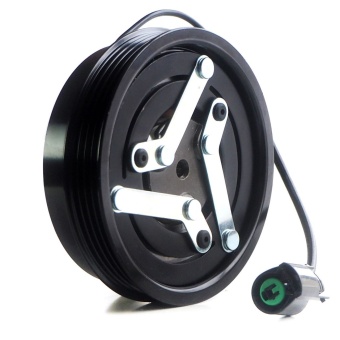

Air Conditioning Compressor Clutch Assembly Repair Kit for Hyundai Getz 2002-2011
Compatibility with AC Compressor Halla Climate Control Corp HCC HS-11.

Package

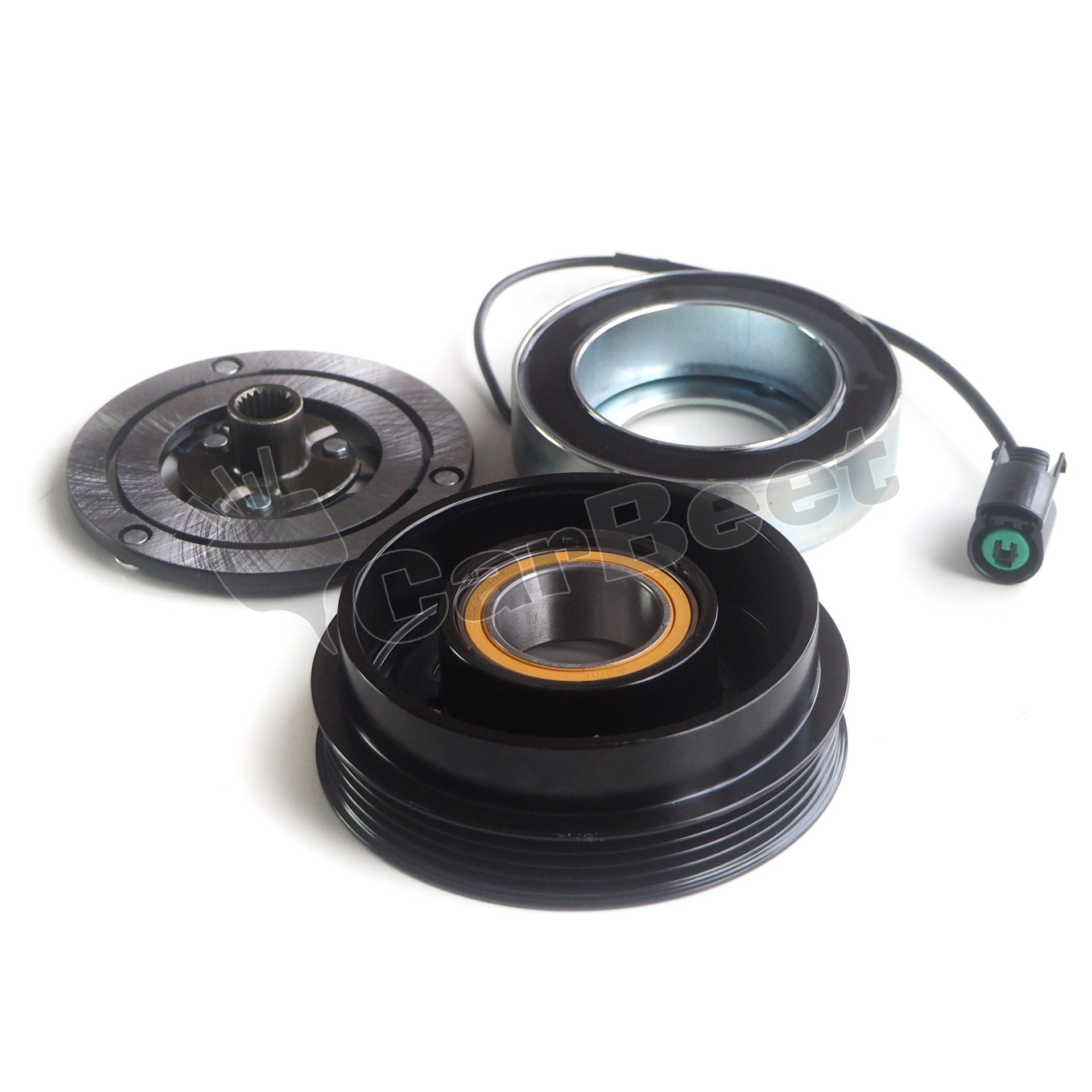

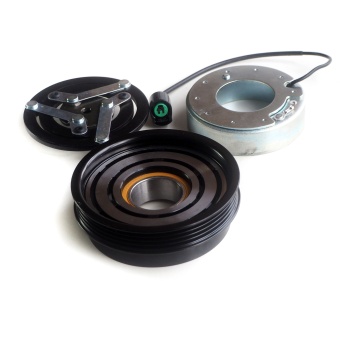

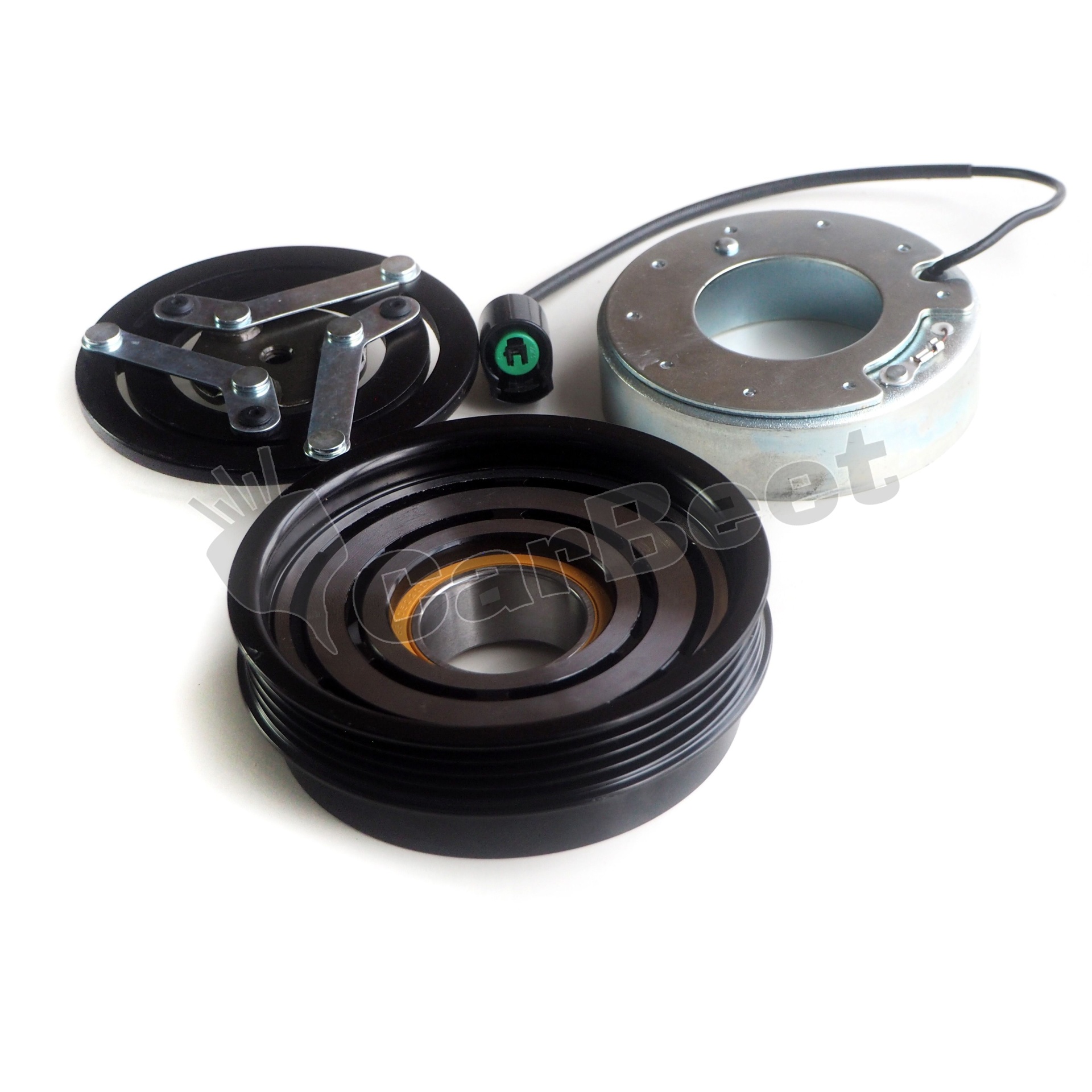

Pulley, pressure plate, electromagnet and washers, for adjusting gap between pulley and pressure plate.

Marka	Hyundai
Model	Getz
Warranty	12 months
Country	China
Pulley Groove Quantity	4
Pulley Diameter (mm)	115
Front Plate Diameter (mm)	98
Long of spline (mm)	15
Number of splines	21
Bearing Size (mm)	35-52-20
Outer Diameter Electromagnetic coils (mm)	61-93
Thickness (height) Electromagnetic Coil (mm)	24,5
Mounting Hole Diameter Electromagnetic coils (mm)	45
AC Compressor and Part Number	97701-1C100 (977011C100)977011-CXXX (977011CXXX)F500-KP1AAA
