-AC Compressor Clutch Assembly Repair Kit for Hyundai Elantra MD, Kia Soul PS

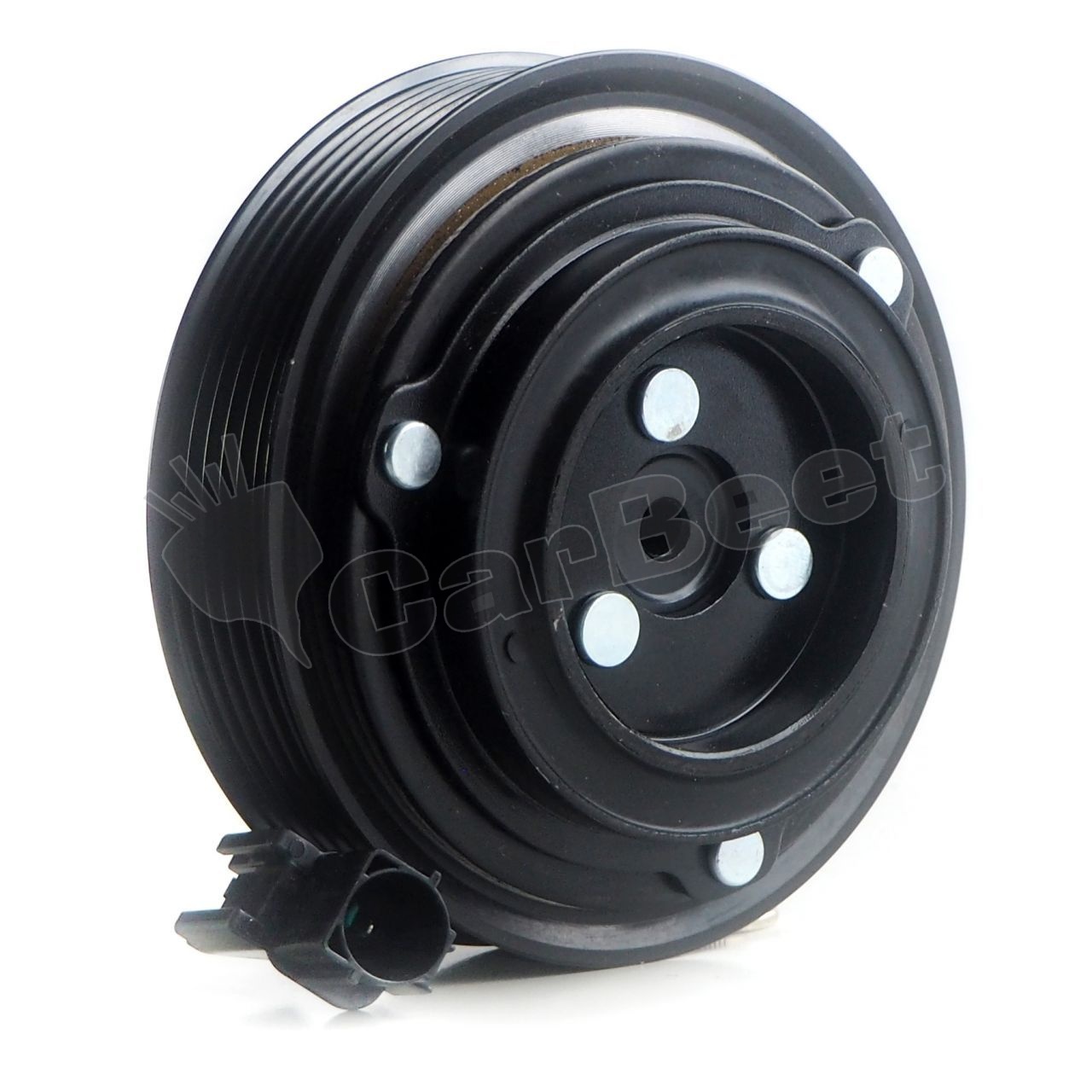

AC Compressor Clutch Assembly Repair Kit for Hyundai Elantra MD, Kia Soul PS

  • ac compressor clutch assembly repair kit for hyundai elantra md, kia soul ps
  • ac compressor clutch assembly repair kit for hyundai elantra md, kia soul ps
  • ac compressor clutch assembly repair kit for hyundai elantra md, kia soul ps
  • ac compressor clutch assembly repair kit for hyundai elantra md, kia soul ps
  • ac compressor clutch assembly repair kit for hyundai elantra md, kia soul ps
  • ac compressor clutch assembly repair kit for hyundai elantra md, kia soul ps
  • ac compressor clutch assembly repair kit for hyundai elantra md, kia soul ps
  • ac compressor clutch assembly repair kit for hyundai elantra md, kia soul ps
  • ac compressor clutch assembly repair kit for hyundai elantra md, kia soul ps
Postpone Postponed
Compare In comparison
Article FD-0494
19 USD/pcs.
- +
Add to cartIn the basket
Buy in 1 click
To share
The price is valid only for the online store and may differ from prices in retail stores
  • Description
  • Characteristics
  • Ask a question
  • Air Conditioning Compressor Clutch Assembly Repair Kit for:
    •  Hyundai Elantra MD (5th generation) (2010-2016)
    •  Kia Soul PS (2nd generation) 1,6L engine G4FG
    Compatibility with AC Compressor Halla Climate Control Corp HCC VS-12E.

    Package

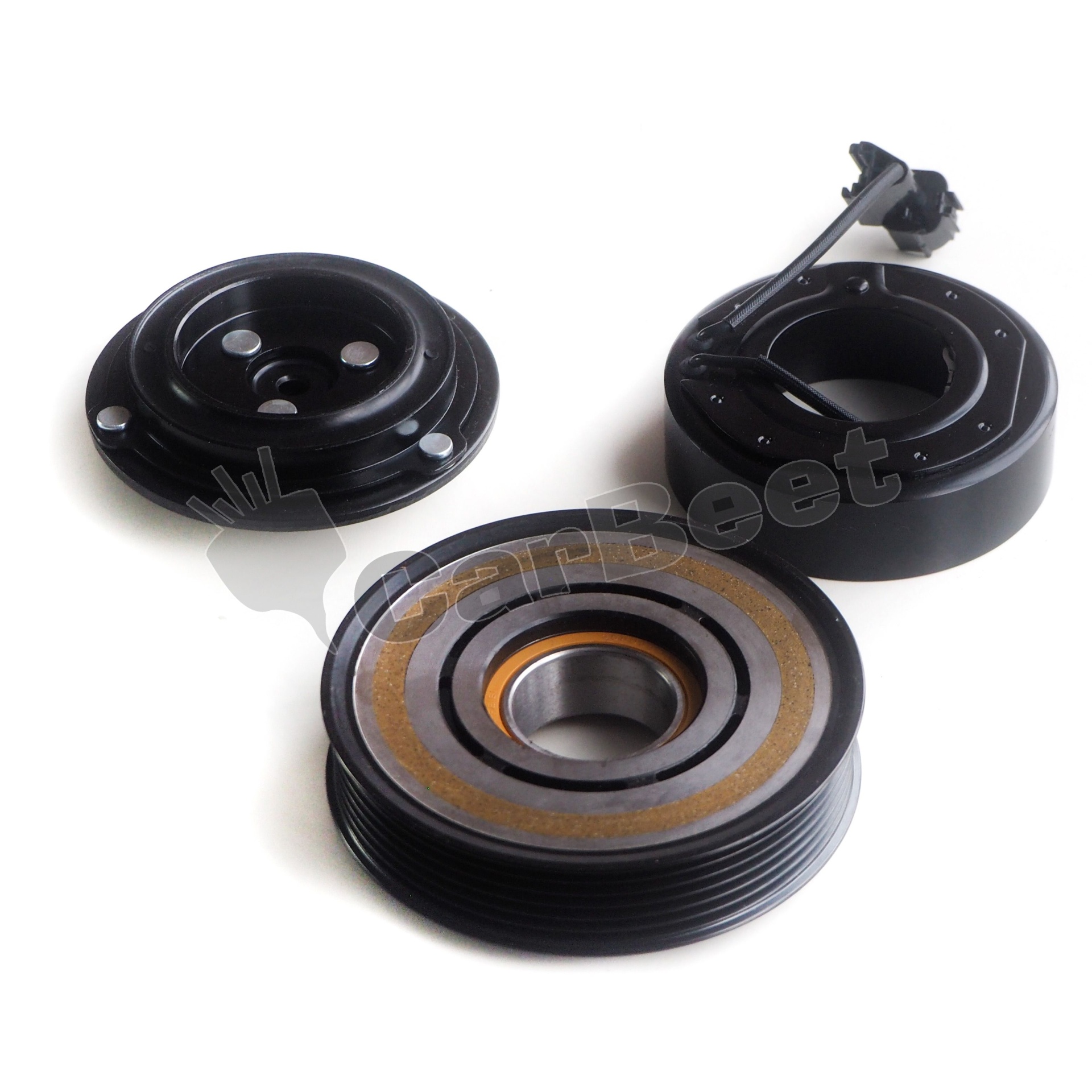

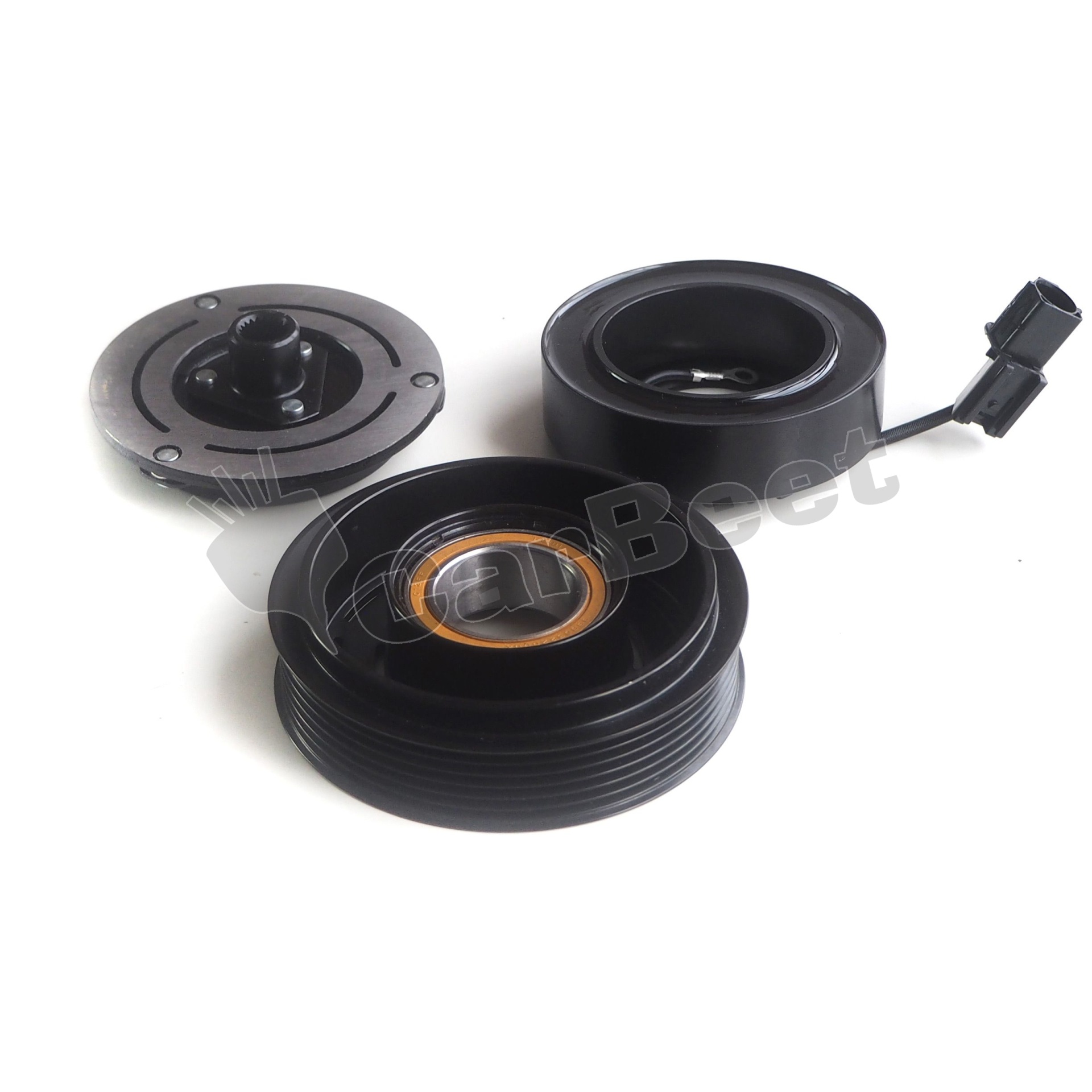

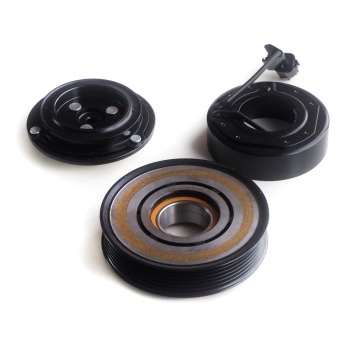

    Pulley, pressure plate, electromagnet and washers to adjust gap between pulley and pressure plate.
  • Marka Hyundai, Kia
    Model Elantra , Soul
    Warranty 12 months
    Country China
    Pulley Groove Quantity 6
    Pulley Diameter (mm) 119
    Front Plate Diameter (mm) 100
    Long of spline (mm) 14,5
    Number of splines 21
    Bearing Size (mm) 35-52-20
    Outer Diameter Electromagnetic coils (mm) 61-95
    Thickness (height) Electromagnetic Coil (mm) 29
    Mounting Hole Diameter Electromagnetic coils (mm) 45
    AC Compressor and Part Number 97701-3X500;F500-ATBAB0;97701A5001;976433X500
