AC Compressor Clutch Assembly Repair Kit for Mitsubishi ASX

Postpone Postponed

Compare In comparison

Article FD-3333

19 USD/pcs.

- +

Add to cart

Buy in 1 click

To share

The price is valid only for the online store and may differ from prices in retail stores

Description
Characteristics
Ask a question

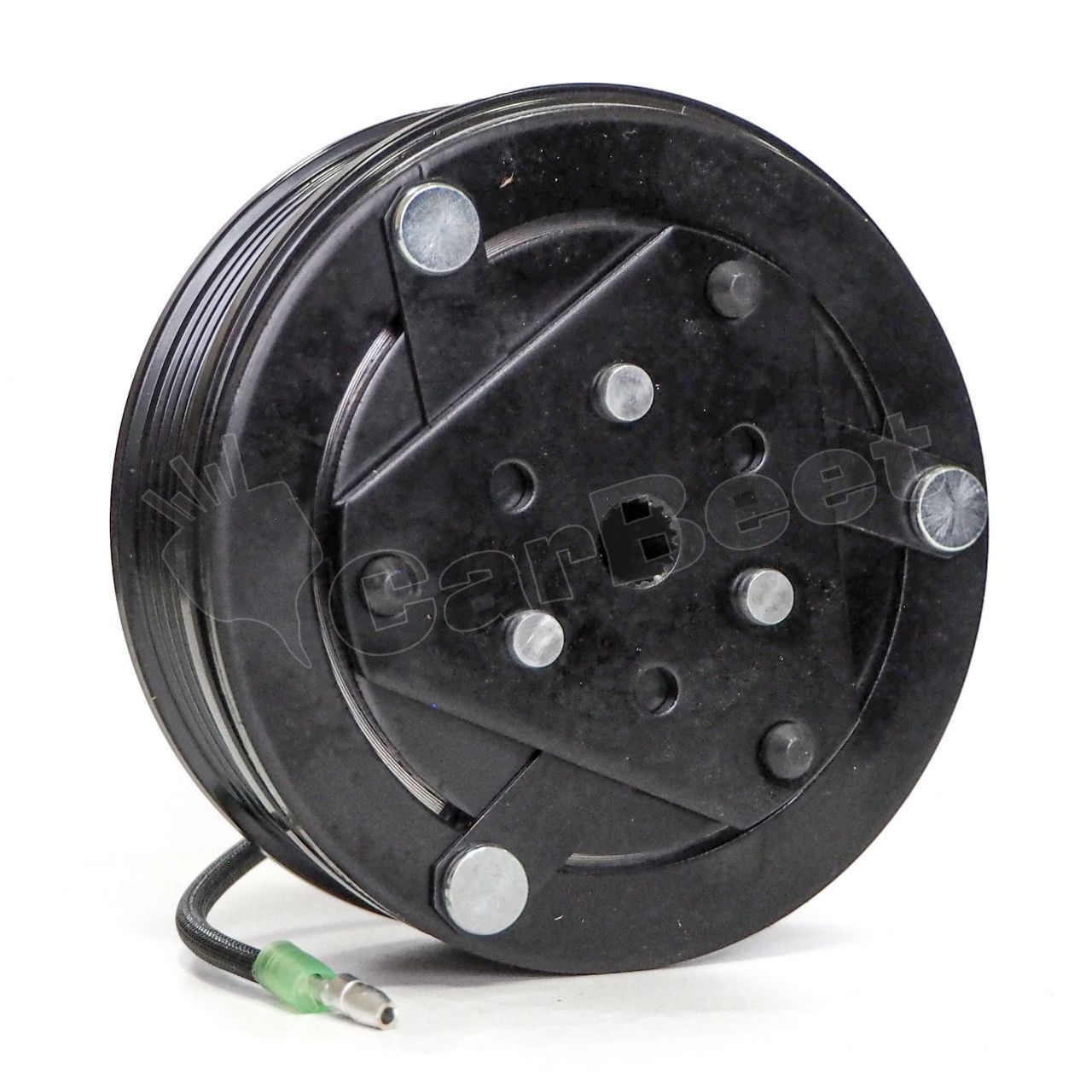

Air Conditioning Compressor Clutch Assembly Repair Kit for Mitsubishi ASX.
Compatibility with AC Compressor Mitsubishi Heavy Industries QS90.

Package

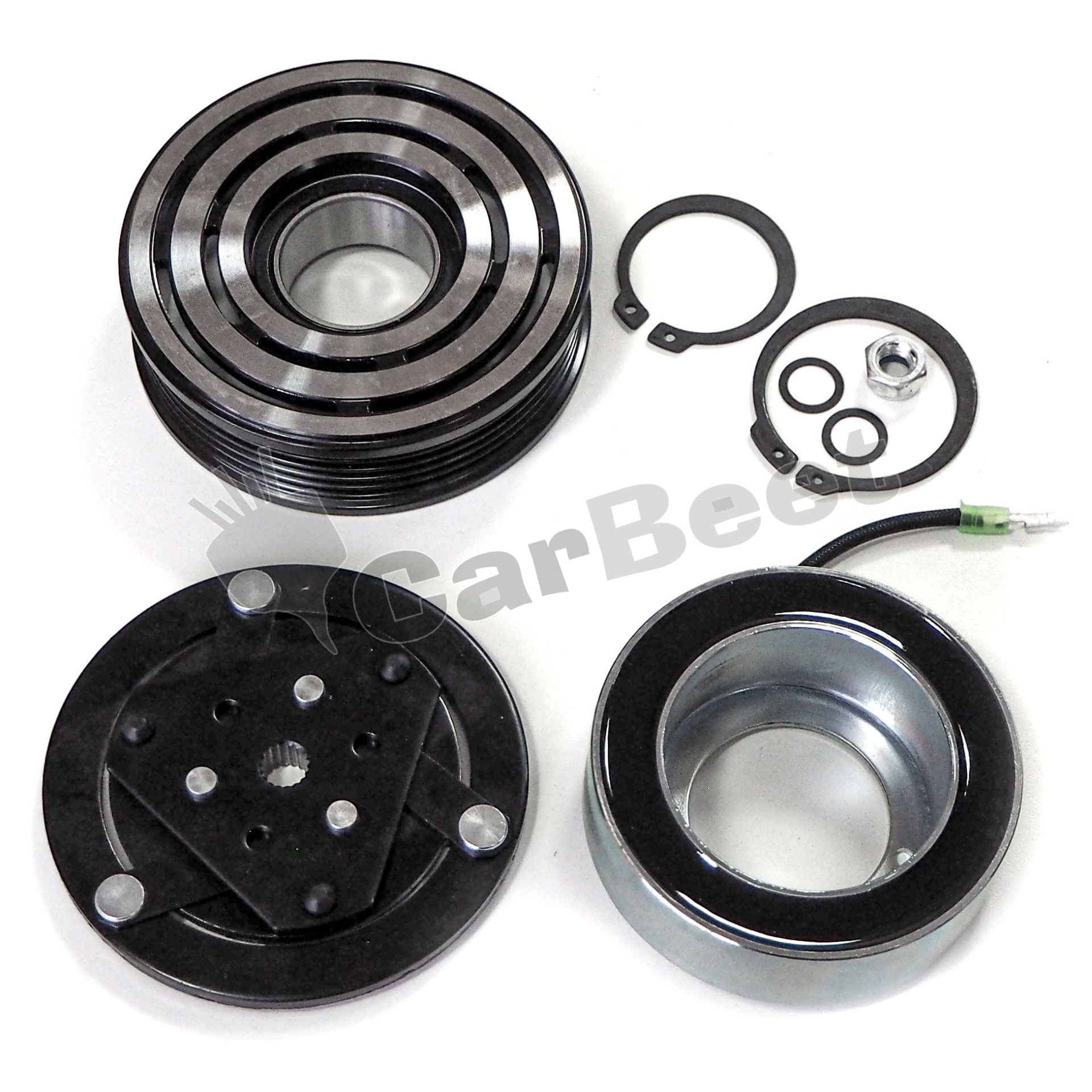

Pulley with bearing, hub, electromagnetic coil, snap ring for attaching the pulley, snap ring for attaching the coil, shims (gap washers) and compressor clutch nut/bolt.

Marka	Mitsubishi
Model	ASX
Warranty	12 months
Country	China
Pulley Groove Quantity	5
Pulley Diameter (mm)	99
Front Plate Diameter (mm)	96
Long of spline (mm)	10,5
Number of splines	18
Bearing Size (mm)	32-47-18
Outer Diameter Electromagnetic coils (mm)	55-83
Thickness (height) Electromagnetic Coil (mm)	28
Mounting Hole Diameter Electromagnetic coils (mm)	40
AC Compressor and Part Number	7813А357AKS200A407G
