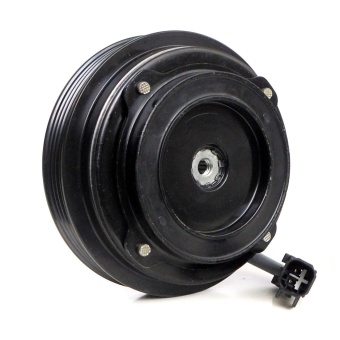

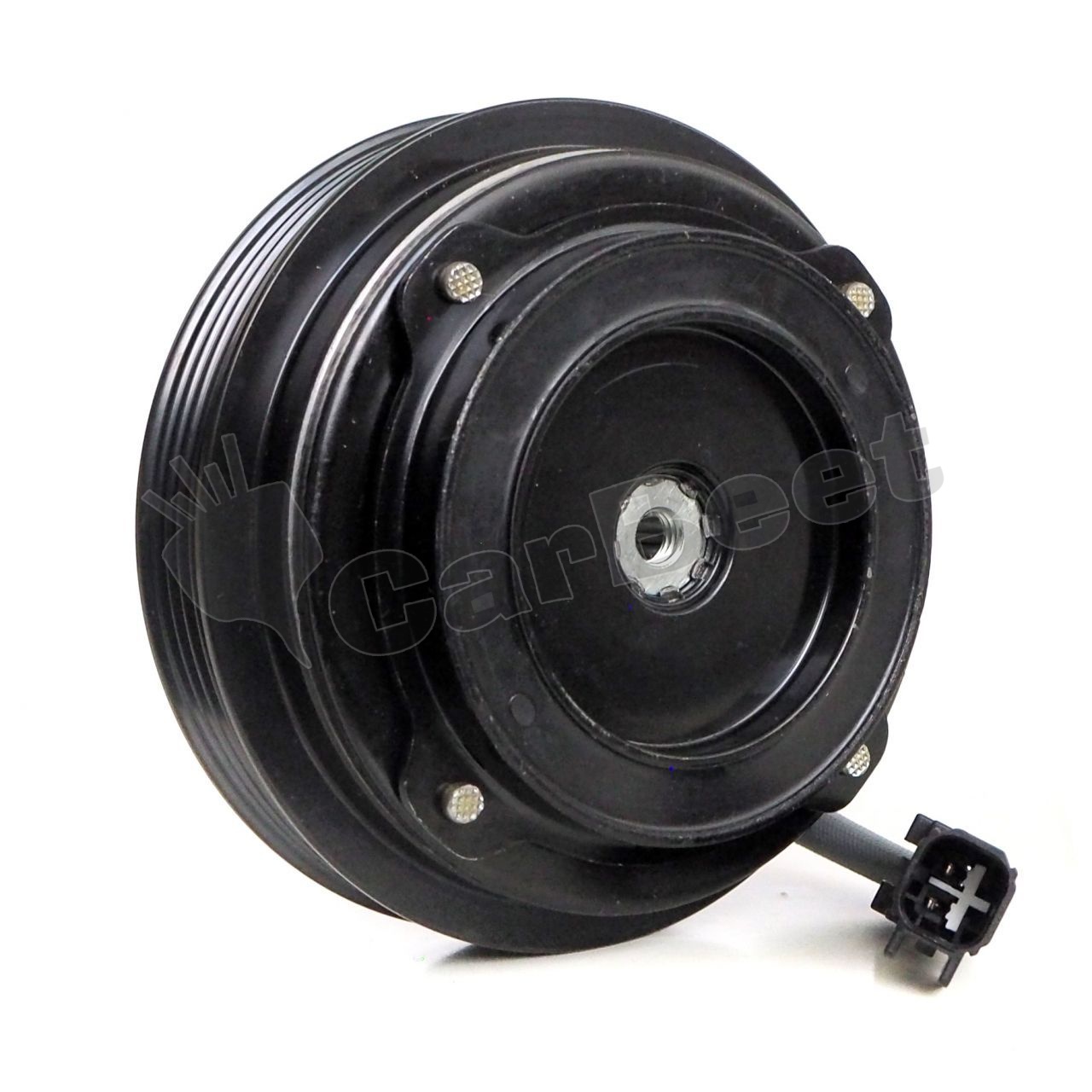

AC Compressor Clutch Assembly Repair Kit for Ford Mondeo 5 - Ford Fusion

Add Add

Save Changes

Article FD-1018

19 USD/pcs.

- +

Add to cart

Buy in 1 click

To share

The price is valid only for the online store and may differ from prices in retail stores

Description
Diagrams
Answer the question

Air Conditioning Compressor Clutch Assembly Repair Kit for:
- Ford Mondeo 5
- Ford Fusion (2012-2019) with 2.0 engine ecoboost, 2.5
Compatibility with AC Compressor Denso 7SBU17C.

Package

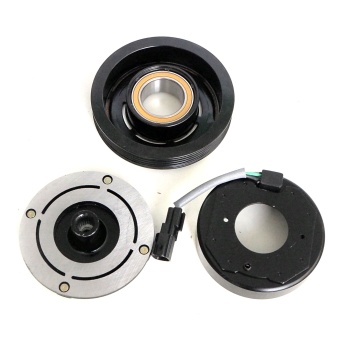

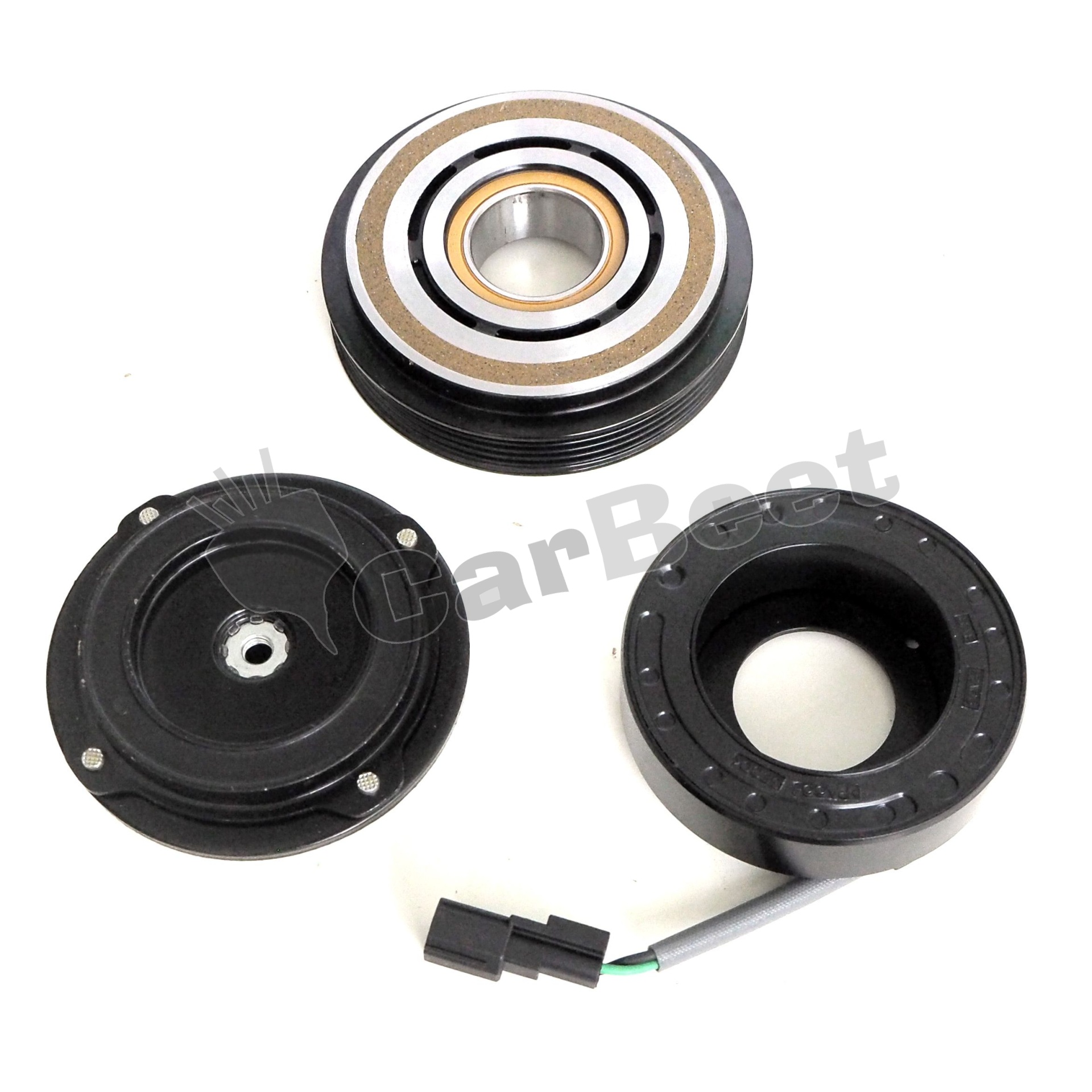

Pulley with bearing, hub, electromagnetic coil, snap ring for attaching the pulley, snap ring for attaching the coil, shims (gap washers) and compressor clutch nut/bolt.

Marka	Ford
Model	Fusion , Mondeo
Warranty	12 months
Country	China
Pulley Groove Quantity	4
Pulley Diameter (mm)	118
Front Plate Diameter (mm)	102
Long of spline (mm)	18
Number of splines	25
Bearing Size (mm)	35-52-22
Outer Diameter Electromagnetic coils (mm)	61-96
Thickness (height) Electromagnetic Coil (mm)	25
Mounting Hole Diameter Electromagnetic coils (mm)	40
AC Compressor and Part Number	2062122;DG9Z-19703-L;4472806923;DG9H-19D629-CG (DG9H19D629CG);DG9H-19D629-CD (DG9H19D629CD)
